Use whiteboard tools

After successfully joining an Interactive Whiteboard room, you can use the default tool to write and draw on the whiteboard. The Interactive Whiteboard SDK provides rich basic editing tools, such as pencil, arrow, straight line, eraser, and various shapes. In addition, the Interactive Whiteboard SDK supports modifying the font size, stroke width, and stroke color.

This page describes using whiteboard tools in the following ways:

• Directly set the whiteboard tool in the code. This method applies when you need only a simple editing tool.
• Implement a simple toolbar and switch whiteboard tools by clicking buttons. This method applies when you want to provide varied tools for users to choose from.

The Interactive Whiteboard SDK provides the setMemberState method for setting the whiteboard tools used in the current whiteboard room. By modifying the MemberState properties of the current room, you can switch tools, select shapes, and change the font size, stroke width, and color.

The MemberState type contains the following properties:

• currentApplianceName: The name of the whiteboard tool currently in use, which can be set as one of the following values:
  • arrow: Arrow
  • clicker: Clicker
  • ellipse: Ellipse
  • eraser: Eraser
  • hand: Hand
  • laserPointer: Laser pointer
  • pencil: Pencil
  • rectangle: Rectangle
  • selector: Selector. If you set the floatBar property in JoinRoomParams as true, when the user uses the selector tool, a floating bar that provides more text editing options displays.
  • shape: Shape. When setting currentApplianceName as shape, you can set shapeType to choose a shape; if you do not set shapeType, the SDK uses triangle by default.
  • straight: Straight line
  • text: Text. If you set the floatBar property in JoinRoomParams as true, when the user uses the text tool, a floating bar that provides more text editing options displays.
• shapeType: (Optional) The shape type, which can be set as one of the following values:
  • pentagram: Pentagram
  • rhombus: Rhombus
  • speechBalloon: Speech balloon
  • triangle: Triangle
• strokeColor: The stroke color in RGB format. For example, [0,0,255] represents blue.
• strokeWidth: The stroke width. This parameter does not take effect for text.
• textSize: The font size. This parameter takes effect only for text.

The presentation of these tools is related to the interactive design and visual style of a specific web application. Considering this, the Interactive Whiteboard SDK does not provide the user interface (UI) of these tools. You need to implement the UI yourself.

To follow the procedure on this page, ensure that you have integrated the Interactive Whiteboard SDK into your project and implemented joining a room. For details, see Join the Whiteboard Room.

You can directly set the whiteboard tool used in the current room in the program. This section uses the Join the Whiteboard Room sample code as an example.

Add the following code to the joinWhiteboard.js file:

whiteWebSdk.joinRoom(joinRoomParams).then(function(room) {

room.bindHtmlElement(document.getElementById("whiteboard"));

// Use the rectangle tool and set the stroke width and color.

room.setMemberState({currentApplianceName: "rectangle", strokeColor: [255,182,193], strokeWidth: 12,});

}).catch(function(err) {

console.error(err);

});

Save the changes, and refresh the index.html page. Now you can click and drag the mouse to draw a pink rectangle on the whiteboard.

To change the whiteboard tool, you can modify the newly added code as follows:

whiteWebSdk.joinRoom(joinRoomParams).then(function(room) {

room.bindHtmlElement(document.getElementById("whiteboard"));

// Use the pentagram shape tool and set the stroke width and color.

room.setMemberState({currentApplianceName: "shape", shapeType: "pentagram", strokeColor: [255,90,193], strokeWidth: 20,});

}).catch(function(err) {

console.error(err);

});

Save the changes, and refresh the index.html page. Now you can click and drag the mouse to draw a blue pentagram on the whiteboard.

In scenarios where you want to offer multiple whiteboard tools and switch the tool based on a user's choice, you can design and implement a toolbar.

This section extends the Join the Whiteboard Room sample code to show the implementation of a simple toolbar.

1. Add the following code to the joinWhiteboard.js file:

...

whiteWebSdk.joinRoom(joinRoomParams).then(function(room) {

room.bindHtmlElement(document.getElementById("whiteboard"));

// Define a toolbar and buttons.

var toolbar = document.getElementById("toolbar");

var toolNames = ["clicker","selector","rectangle","eraser","text","arrow","ellipse","hand","laserPointer","shape","straight"];

for(var idx in toolNames){

var toolName = toolNames[idx];

var btn = document.createElement("BUTTON");

btn.setAttribute("id","btn"+toolName);

var t=document.createTextNode(toolName);

btn.appendChild(t);

// Listen for the event of clicking a button.

btn.addEventListener("click", function(obj){

var ele = obj.target;

// Call the setMemberState method to set the whiteboard tool.

room.setMemberState(

{currentApplianceName: ele.getAttribute("id").substring(3),

shapeType: "pentagram",

strokeColor: [255,182,200],

strokeWidth: 12,

textSize: 40,});

});

toolbar.appendChild(btn);

console.log(btn.getAttribute("id"));

}

}).catch(function(err) {

console.error(err);

});

2. Add the following code to the index.html file to display the toolbar on the web page:

<!DOCTYPE html>

<html>

<head>

<script src="https://sdk.netless.link/white-web-sdk/2.12.20.js"></script>

<script src="./joinWhiteboard.js"></script>

</head>

<body>

<div id="whiteboard" style="width: 100%; height: 100vh;">

</div>

<!--Define the style of the toolbar and add it to the web page-->

<div id="toolbar" style="position:relative; top:40px;height:100px;z-index:10;">

</div>

</body>

</html>

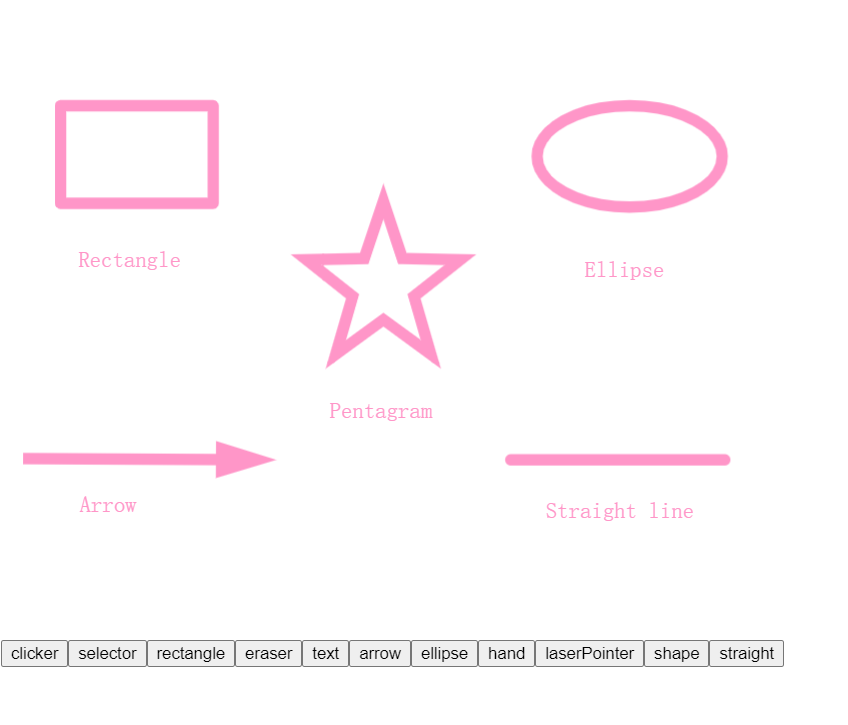

Save the changes, and refresh the index.html page. The following toolbar displays in the lower left corner of the page. You can click any button and use the corresponding tool to write and draw on the whiteboard.

In addition to the basic editing tools listed in the Understand the tech section, the Interactive Whiteboard SDK provides additional editing functions through the following methods:

Methods	Description
copy	Copies the selected content.
paste	Pastes the copied content.
duplicate	Duplicates the selected content.
delete	Deletes the selected content.
redo	Redoes an undone action.
undo	Undoes an action.
disableeraseimage	Disables the eraser from erasing images on the whiteboard.
disabledeviceinputs	Disables the whiteboard from responding to users' operations.

These methods, which are also members of the Room interface, also do not have user interfaces provided by the SDK. You can implement these functions by designing a UI and calling the corresponding methods according to your business needs.
