Compile and run a sample project

Agora provides open-source sample projects on GitHub to demonstrate the implementation of basic and advanced Video SDK features.

This page shows how to compile, configure, and run the Video SDK Unreal Engine sample project.

• Unreal Engine 4.27 or higher

• Prepare your development environment according to your target platform and engine version:

  Development platform	Reference documentation	Remarks
  Android	Android development environment requirements	-
  iOS	iOS development environment requirements	A valid Apple developer signature
  macOS	macOS development environment requirements	A valid Apple developer signature
  Windows	Windows development environment requirements	32-bit Windows only supports Unreal Engine 4 and below. To use Unreal Engine with 32-bit Windows, uncomment the code relating to Win32 in the AgoraPluginLibrary.Build.cs file

• Two physical devices for testing

• A computer with Internet access. If a firewall is deployed in your network environment, refer to Connect through restricted networks with Cloud Proxy to use Agora services normally.

• A camera and a microphone

• A valid Agora account and project

• Installed Git

1. Run the following command to clone the repository locally:

   git clone git@github.com:AgoraIO-Extensions/Agora-Unreal-RTC-SDK.git


2. The C++ API usage examples are located in /Agora-Unreal-SDK-CPP-Example. These include:

   Description	Path
   Basic functions	/Agora-Unreal-SDK-CPP-Example/Content/API-Example/Basic
   Advanced functions	/Agora-Unreal-SDK-CPP-Example/Content/API-Example/Advance

Refer to the following steps to integrate the SDK:

1. Go to SDKs to download the latest version of the Video SDK and unzip it.
2. Under your project root folder, create a folder named Plugins.
3. Copy AgoraPlugin from the SDK folder to Plugins.

In the Unreal Editor, you can compile and run the sample project at the main level or any sublevel.

Main Level

1. In the path of the C++ API example, double-click AgoraExample.uproject to open the project.

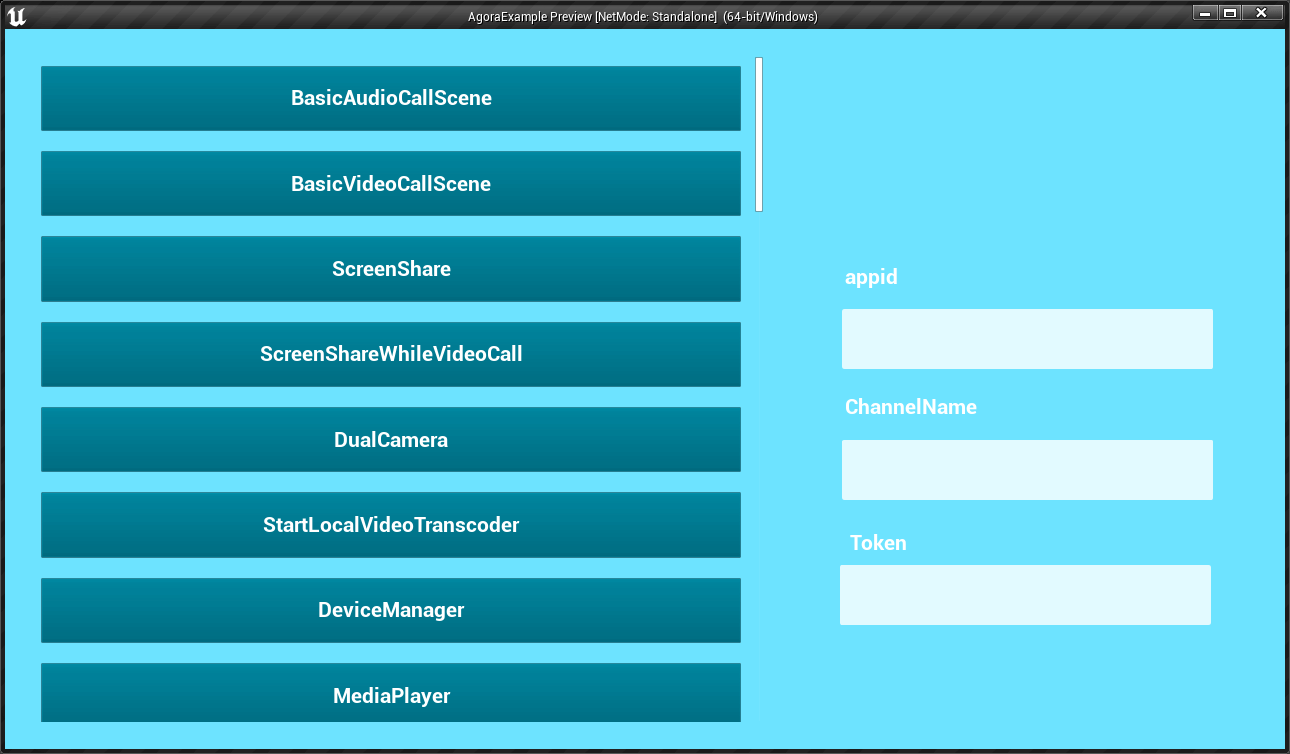

2. Double-click MainLevel, then click Compile and run the sample project. You see the following interface:



3. Fill in the text box with the App ID and temporary token you obtained from the Agora Console, and the channel name you used to generate the token.

4. Click the button on the left to navigate from the main level to the sub-levels of the API example to experience the selected demo. Choose BasicVideoCallScene as an example, click JoinChannel to join the channel. You see yourself in the local view.



5. To test various audio and video interaction scenarios, connect to the Agora web demo, or install and run the sample project on a second device. Make sure you use the same App ID on both devices. When you join the same channel from two devices, you can see and hear each other.

Sub Level

1. In the path of the C++ API example, double-click AgoraExample.uproject to open the project.

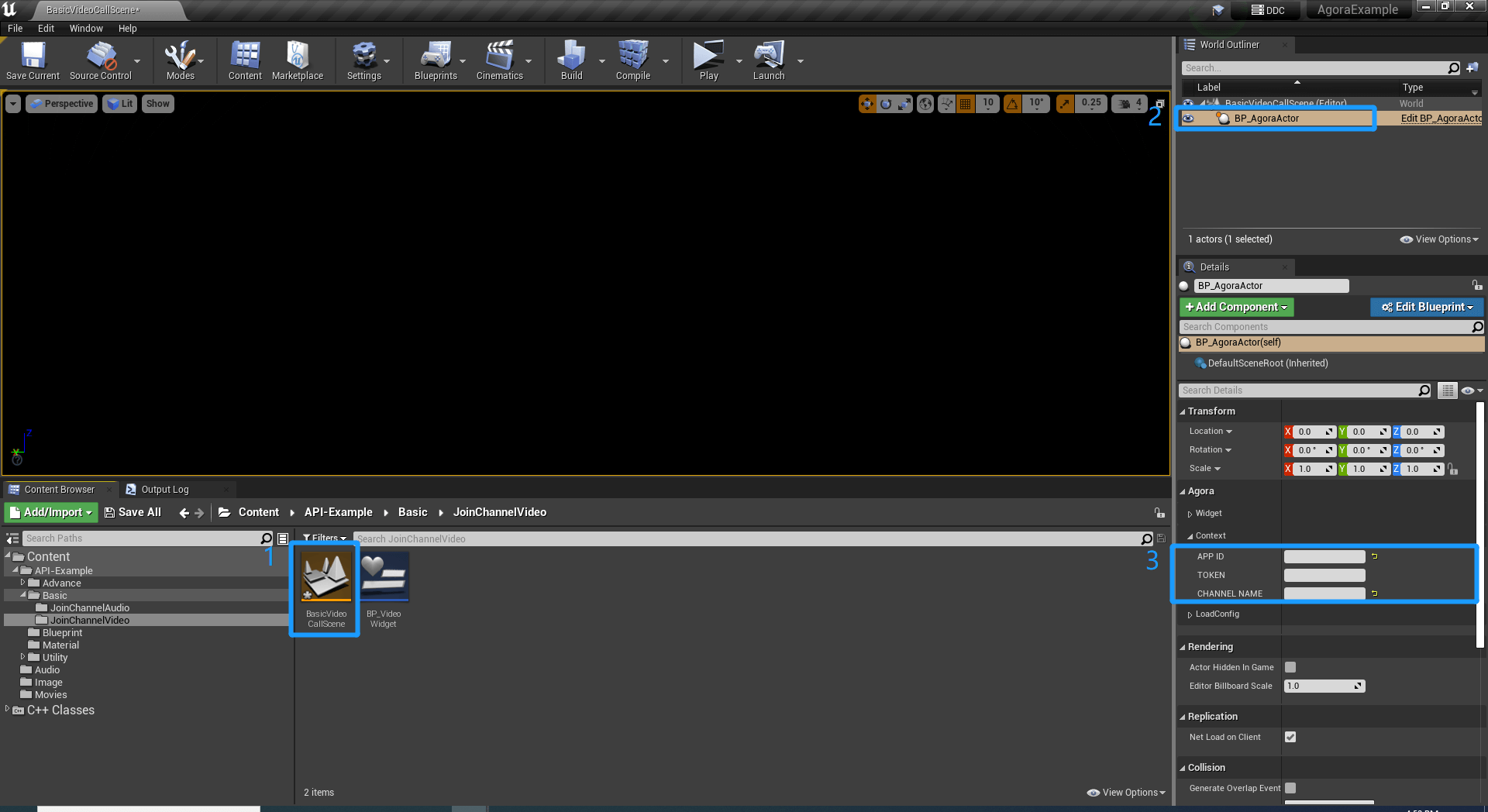

2. Choose BasicVideoCallScene as an example, double-click the sub-level in the Content Browser, and then click the BP_AgoraActor blueprint in the World Outliner panel. Fill in the App ID, temporary token, and channel name of your project in the Details panel.

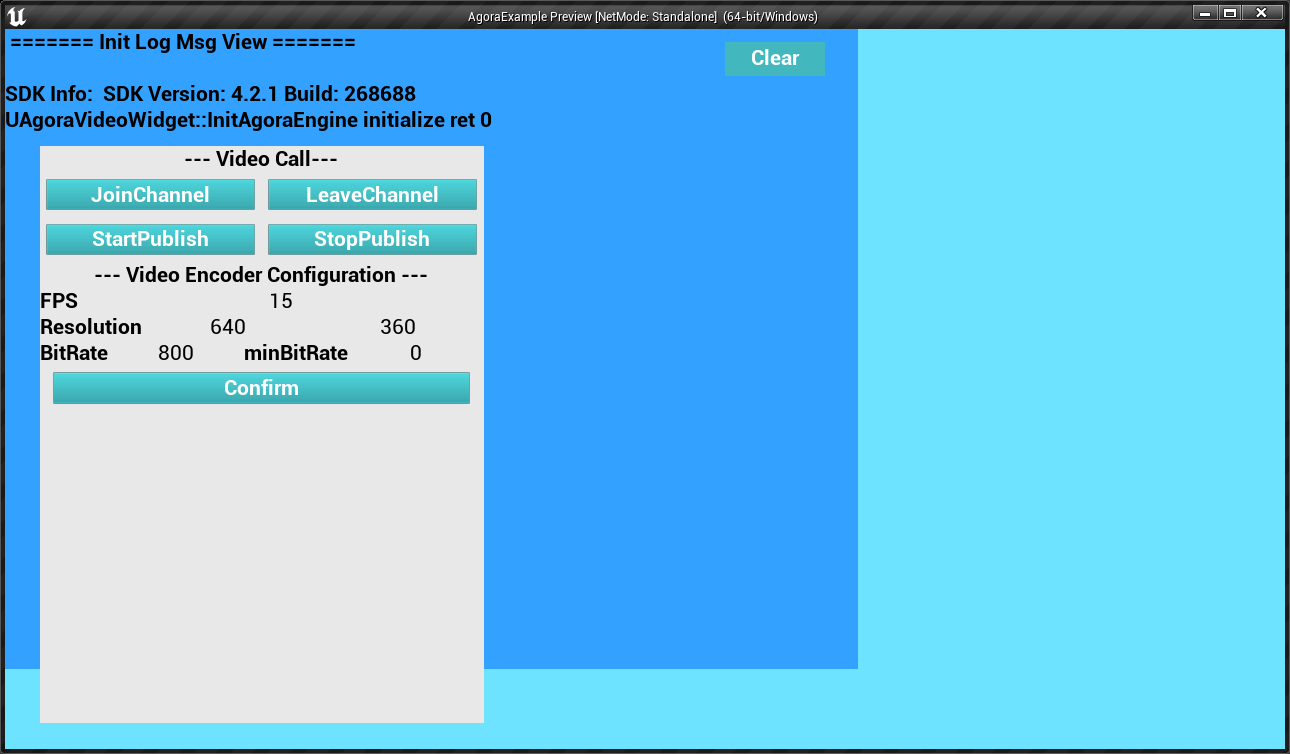

3. Click Compile and run the sample project at the sublevel. You see the following interface:



4. Click JoinChannel to join the channel. You see yourself in the local view.

5. To test various audio and video interaction scenarios, connect to the Agora web demo, or install and run the sample project on a second device. Make sure you use the same App ID on both devices. When you join the same channel from two devices, you can see and hear each other.
